125 Square - Line Gutter
Specially designed for high water capacity control, these gutters feature a high face design.
rainwater > 125 Square-Line Gutter

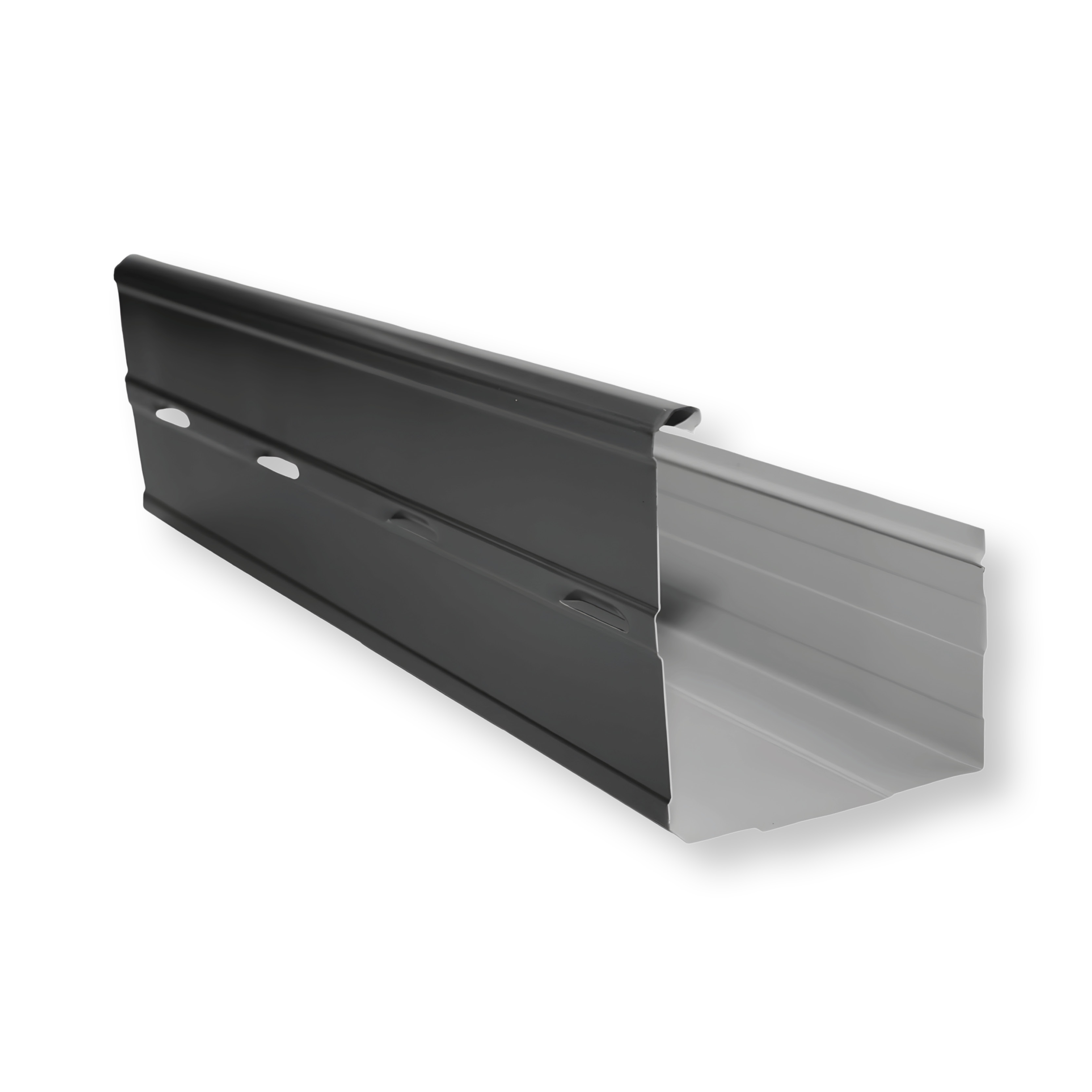

125 Square-Line Gutter
Details
Combining heavy duty performance and exquisite appearance, our 125 Square-Line Gutters are a popular choice. Slotted along the high face, the 125 Square-Line ensures superior water carrying capacity, as well as a concealed roofline. The gutter has a large catchment area, meaning that less water will escape and overflow in times of rainfall.
FEATURES AND BENEFITS
- High front design, slotted
- Available in 0.55mm BMT
- Ideal for residential applications
- High front ensures roofline is concealed
- Can be manufactured with a patio fold for use as patio guttering
Specifications
| Application: | Rainwater collection, residential applications |
| Material Thickness: | 0.55mm BMT |
| Steel Grade: | G300 Steel |
| Substructure: | Fix to steel or timber fascia |
| Typical Fixing Method: | Snap clip to steel fascia, bracket or spike fix to timber fascia at max 1200mm centres |
| Fasteners: | #10 wafer headed fasteners for brackets on timber fascia |
| Nominal Width: | 122mm |
| Effective Cross Sectional Area: | 6700sqmm |
| Roof area drained per downpipe (Brisbane): | 23sqm |
| Overflow provisions: | Slotted |
| Max roof run length to prevent overflow (Brisbane): | 7m |
| Minimum downpipe size: | 100mm round, 100x75mm rectangle |
| Installation: | The gutter shall be installed by an accredited installer, in accordance with manufacturers specifications. |
| Material and Finishes Available | Protected steel to AS 1397, Aluminium/Zinc/Magnesium coated steel with or without protective and decorative paint film to AS 2728. |
Accessories
Stop Ends
Internal Corner
External Corner
Concealed Brackets
Stiffener Brackets
Snap Clips
Resources
PRODUCT BROCHURE
TECHNICAL MANUAL
RESIDENTIAL RAINWATER RANGE
COLOURS/FINISHES
HAMPTONS WHITE
C
OFF WHITE
C
MONTAUK
GULL GREY
C
STONY BROOK
ARMOUR GREY
SMOOTH CREAM
MERINO
DUSK
MIST GREEN
CAULFIELD GREEN
HERITAGE RED
BIRCH
GULF
JASMIN BROWN
WALLAROO
BASAL
C
M
SLATE GREY
IRON GREY
MOUNTAIN BLUE
MONOLITH
C
M
EBONY
Legend
C Available in UniCote® Coastal Steel.
M Available in UniCote® Matt Steel.*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
C Available in UniCote® Coastal Steel.
M Available in UniCote® Matt Steel.
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
UniCote® is a registered trademark of Selection Steel Pty Ltd.
DOVER WHITE™
SA = 0.28
SURFMIST®
SA = 0.33
U
M
SOUTHERLY®
SA = 0.40
SHALE GREY™
SA = 0.44
U
M
BLUEGUM®
SA = 0.57
M
WINDSPRAY®
SA = 0.60
U
CLASSIC CREAM™
SA = 0.33
PAPERBARK®
SA = 0.43
EVENING HAZE®
SA = 0.43
PALE EUCALYPT®
SA = 0.60
COTTAGE GREEN®
SA = 0.73
MANOR RED®
SA = 0.70
DUNE®
SA = 0.48
U
M
GULLY®
SA = 0.64
JASPER®
SA = 0.67
WALLABY®
SA = 0.64
U
BASALT®
SA = 0.67
M
WOODLAND GREY®
SA = 0.70
U
IRONSTONE®
SA = 0.73
DEEP OCEAN®
SA = 0.74
MONUMENT®
SA = 0.73
U
M
NIGHT SKY®
SA = 0.95
Legend
U Available in COLORBOND® Ultra steel.
M Available in COLORBOND® Matt steel.*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
U Available in COLORBOND® Ultra steel.
M Available in COLORBOND® Matt steel.
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
COLORBOND® steel and® colour names are registered trade marks of BlueScope Steel Limited. ™ colour names are trade marks of BlueScope Steel Limited.
ZINC GRAPHITE
SILVER QUARTZ
PENTAGON
METAL STONE
WEATHERED IRON
CORTEN RED
SPECTRUM
SAFFIANO
MIDNIGHT MATTE
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
SNOW WHITE
PEARL WHITE
CLOUDY WHITE
FIJI DREAM
ISLAND SANDS
FRENCH POLISH
BISCUIT
GREY GUM
PILBARA GREY
WOLFRAM
STORMY GREY
TUDOR
ALBATROSS
HEMATITE
MATAI
KAURI
COSMIC
SKY BLUE
FADED DENIM
THUNDER BLUE
BLUE METAL
BANKSIA
MOSS GREEN
BILLABONG
ROYAL FERN
JUNGLE GREEN
CYAD
DESERT DUNE
ROSE
SUNSET RED
BAUXITE
COBBLE
ELKHORN
CLAY
DUSTY COAL
AGED COPPER
OBSIDIAN
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
® colour names are registered trade marks of BlueScope Steel Limited.
*The swatches above have been reproduced to represent actual product colours as accurately as possible. However, we recommend checking your chosen colour against an actual sample of the product before purchasing as varying light conditions, different devices/screens and printing limitations may affect colour tones.
ZINCALUME® is a registered trademark of BlueScope Steel Limited.
UniZinc™ is a registered trademark of Selection Steel Pty Ltd.
